Smart Hybrid Inverter
Rp3,540,000
Power
Detail
Overview

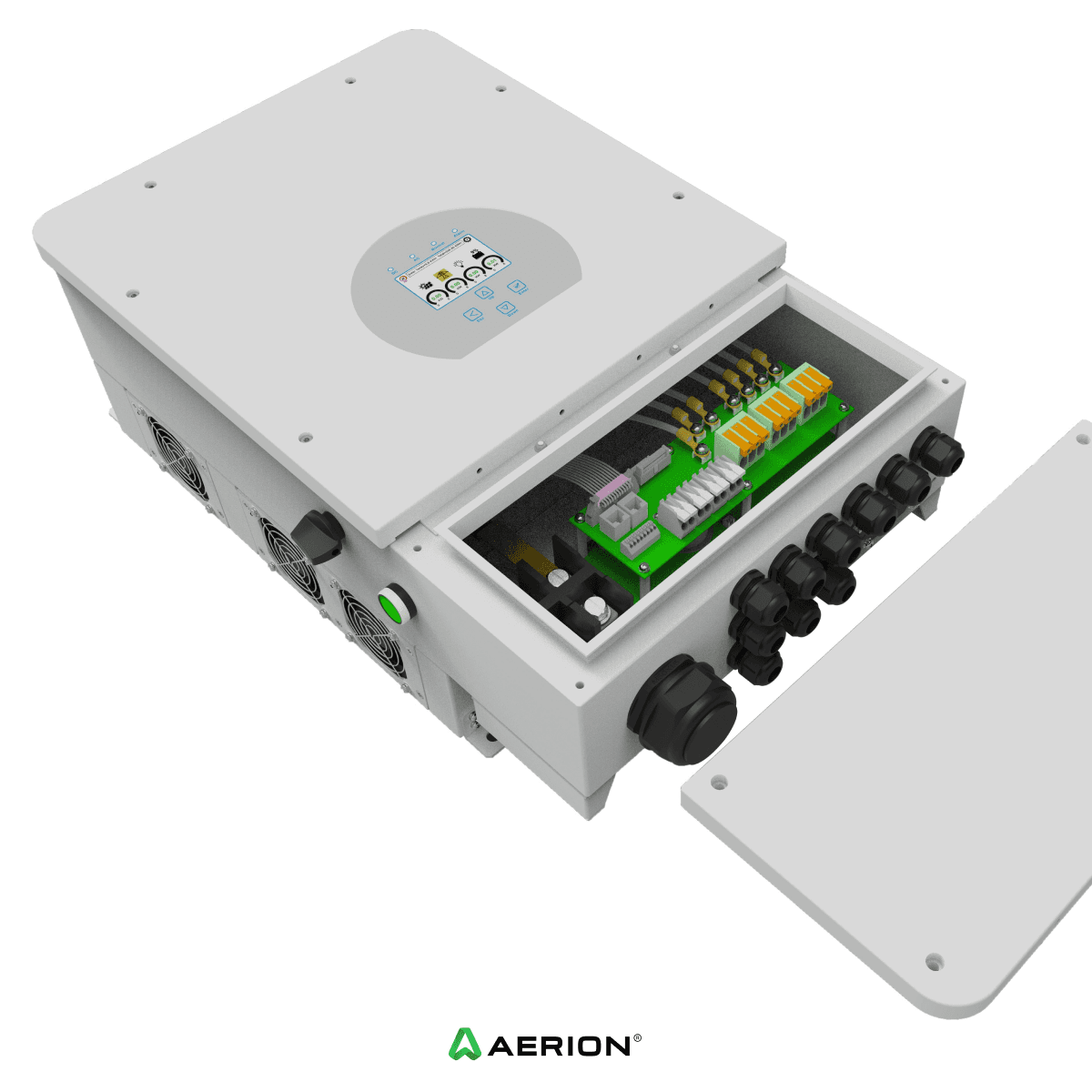

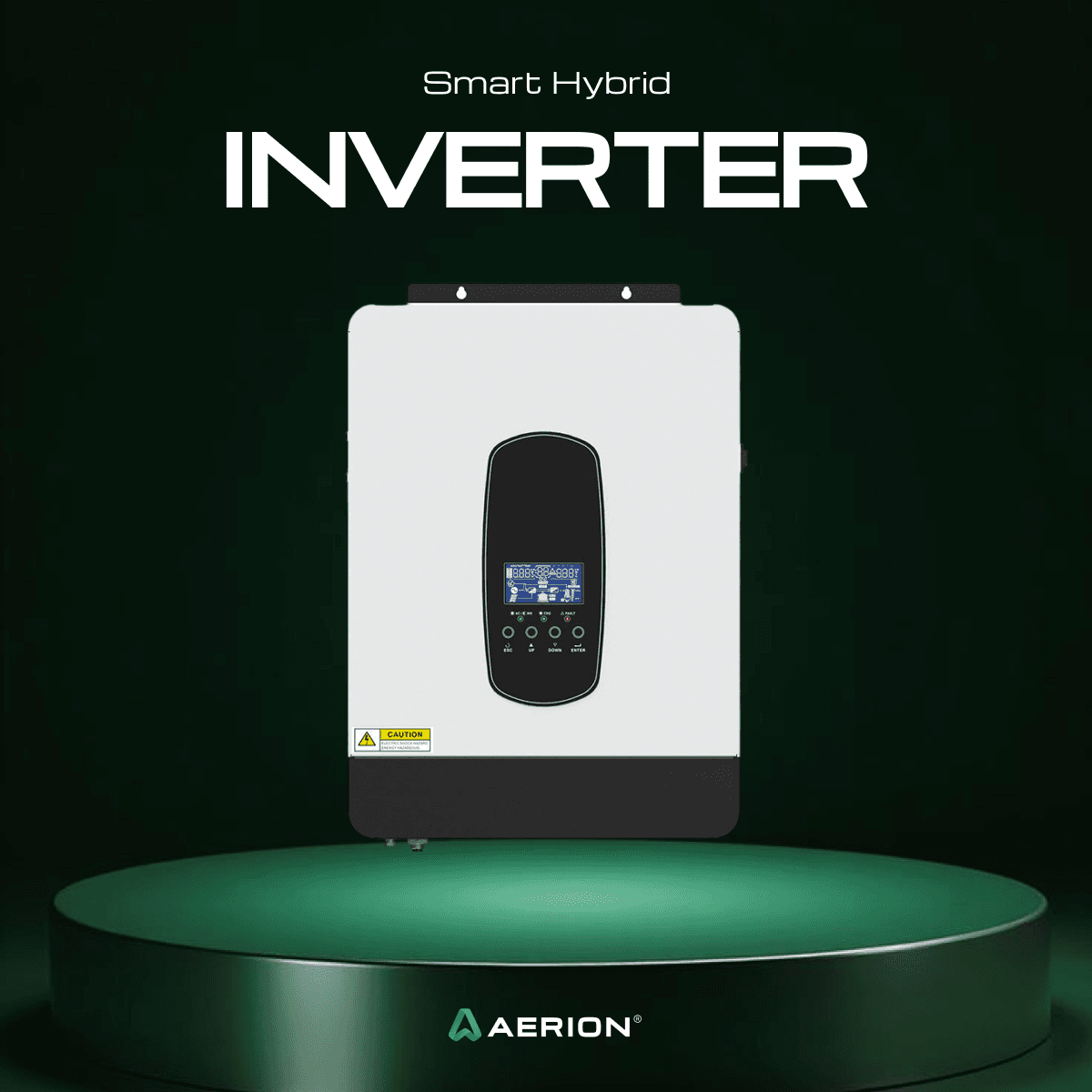

The Aerion Smart Hybrid Inverter is an intelligent power conversion system designed to seamlessly integrate solar, battery, and grid energy sources. Built for maximum flexibility and efficiency, it ensures continuous power supply, optimized energy management, and reliable operation across residential, commercial, and industrial applications.
Equipped with advanced MPPT technology and adaptive energy control, the inverter intelligently balances power flow between PV generation, battery storage, and grid input. Its hybrid functionality allows for both on-grid and off-grid operation, ensuring uninterrupted energy access even during outages.
Key Features
Hybrid Energy Management — Combines solar, battery, and grid energy for optimal efficiency and continuous power delivery.
Advanced MPPT Technology — Maximizes solar harvesting with fast and precise tracking response.
Seamless Backup Function — Automatically switches to battery power during grid failure for uninterrupted operation.
Smart Monitoring — Real-time performance tracking via LCD display, mobile app, or web portal (Wi-Fi/4G supported).
High Efficiency — Up to 98% conversion efficiency for reduced energy loss and improved cost savings.
Grid-Interactive Design — Supports on-grid, off-grid, and hybrid modes for flexible installation scenarios.
Safe & Reliable — Integrated protection features including over-voltage, short-circuit, and temperature safeguards.
Applications
Residential and villa solar systems
Commercial and industrial solar power setups
Hybrid and off-grid energy systems
Backup power for essential facilities
EV charging stations and energy storage systems
Specifications
Rated Power | 5 kW / 10 kW / 15 kW / 20 kW (model options) |
Phase Type | Single-Phase / Three-Phase |
Maximum PV Input Power | Up to 26 kW |
Maximum PV Voltage | 1000 V DC |
MPPT Voltage Range | 180 – 950 V |
MPPT Trackers | 2 or 3 independent |
Battery Type | Lithium-ion / Lead-acid compatible |
Battery Voltage Range | 48 – 800 V |
Efficiency (Peak) | 98.2% |
Communication | RS485, CAN, Wi-Fi / 4G (optional) |
Display | LCD Screen / App Monitoring |
Protection | IP65 rated, anti-islanding, surge & overload protection |
Operating Temperature | -25°C to +60°C |
Certifications | CE, IEC, ISO, UN38.3, RoHS |
