Powerwall Lithium Battery 20 kWh
Rp0
Detail

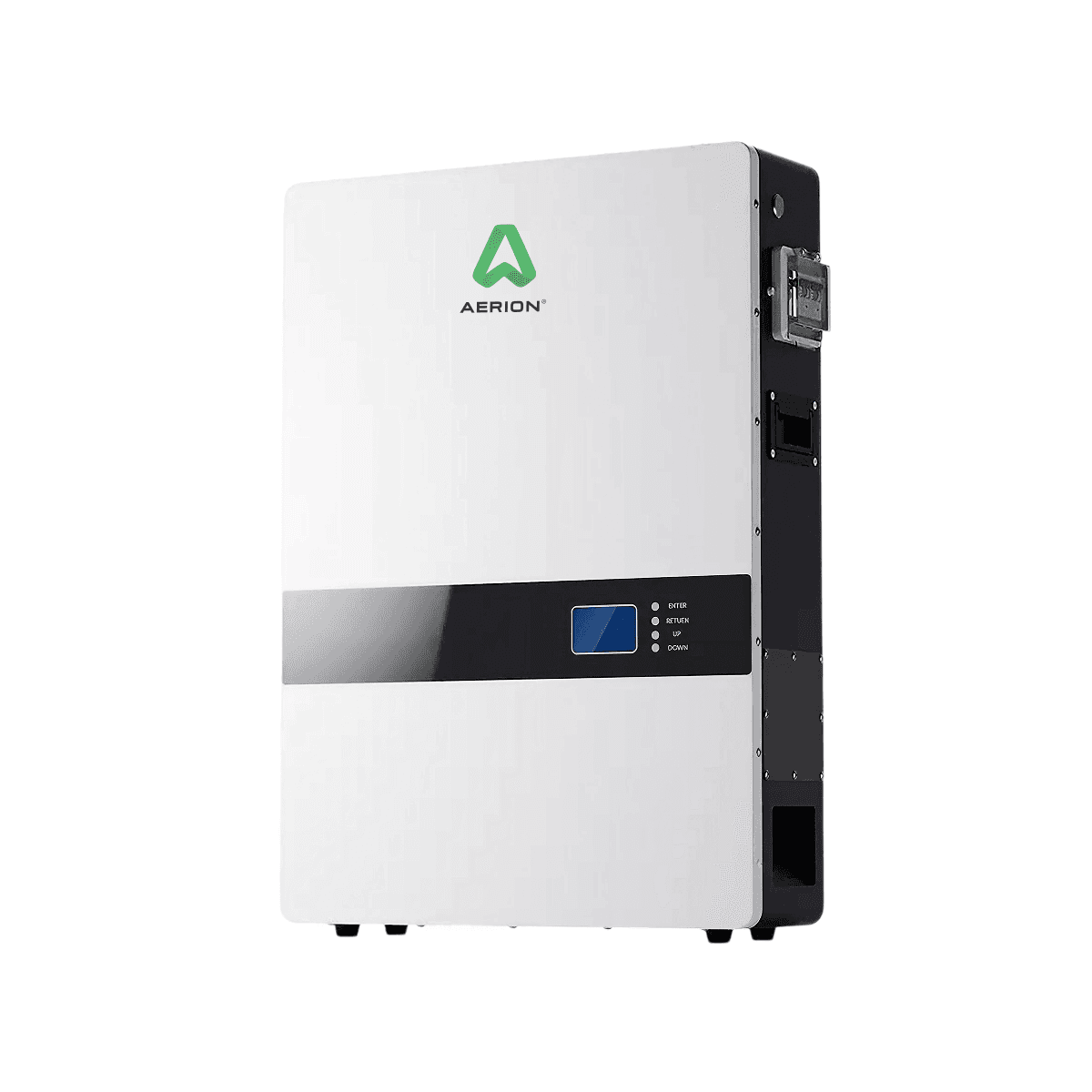

The Powerwall LFP4 by AERION is a high-capacity lithium iron phosphate (LiFePO4) battery engineered for advanced residential, commercial, and industrial energy storage. With a 20 kWh capacity, it ensures stable, long-lasting performance with high round-trip efficiency and enhanced safety standards.
Key Features
High Energy Density: 20 kWh nominal capacity for extended power backup.
Advanced LiFePO4 Chemistry: Superior thermal stability and long lifecycle.
Scalable Design: Supports parallel connection for expanded energy storage systems.
Smart BMS Integration: Real-time monitoring of voltage, current, and temperature.
High Efficiency: Over 95% charge/discharge efficiency.
Wall-Mounted Enclosure: Compact and easy installation for both indoor and outdoor use.
Applications
Residential and commercial solar energy storage
Microgrid and off-grid systems
Backup power for industrial equipment
Peak load shifting and energy optimization
Technical Specifications
Parameter | Specification |
|---|---|
Battery Type | LiFePO4 (Lithium Iron Phosphate) |
Nominal Capacity | 20 kWh |
Nominal Voltage | 51.2 V |
Cycle Life | ≥ 6000 cycles @ 80% DOD |
Round-Trip Efficiency | ≥ 95% |
Rated Power | 10 kW |
Operating Voltage Range | 44.8 – 57.6 V |
Communication Interfaces | RS485 / CAN / Wi-Fi (optional) |
Protection Grade | IP65 |
Cooling Method | Natural air cooling |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 60°C |
Humidity | ≤ 95% RH (non-condensing) |
Installation Type | Wall-mounted |
Dimensions (W × H × D) | 650 × 850 × 220 mm |
Weight | Approx. 150 kg |
