Flexible Solar Panel 500 WP
Rp0
Detail
Overview
The Sunpal Flexible Solar Panel 500 WP is designed to deliver high efficiency in a lightweight, durable, and flexible form. Built with premium monocrystalline cells, it can adapt to curved or uneven surfaces — making it ideal for RVs, boats, and mobile off-grid applications. With a maximum power of 500 watts, it provides a reliable and sustainable energy source wherever you go.
Key Features
Flexible & Lightweight — Only 3 mm thick and weighs just 8.45 kg, perfect for curved or mobile surfaces.
High Efficiency — Equipped with high-grade monocrystalline cells that perform well under various light conditions.

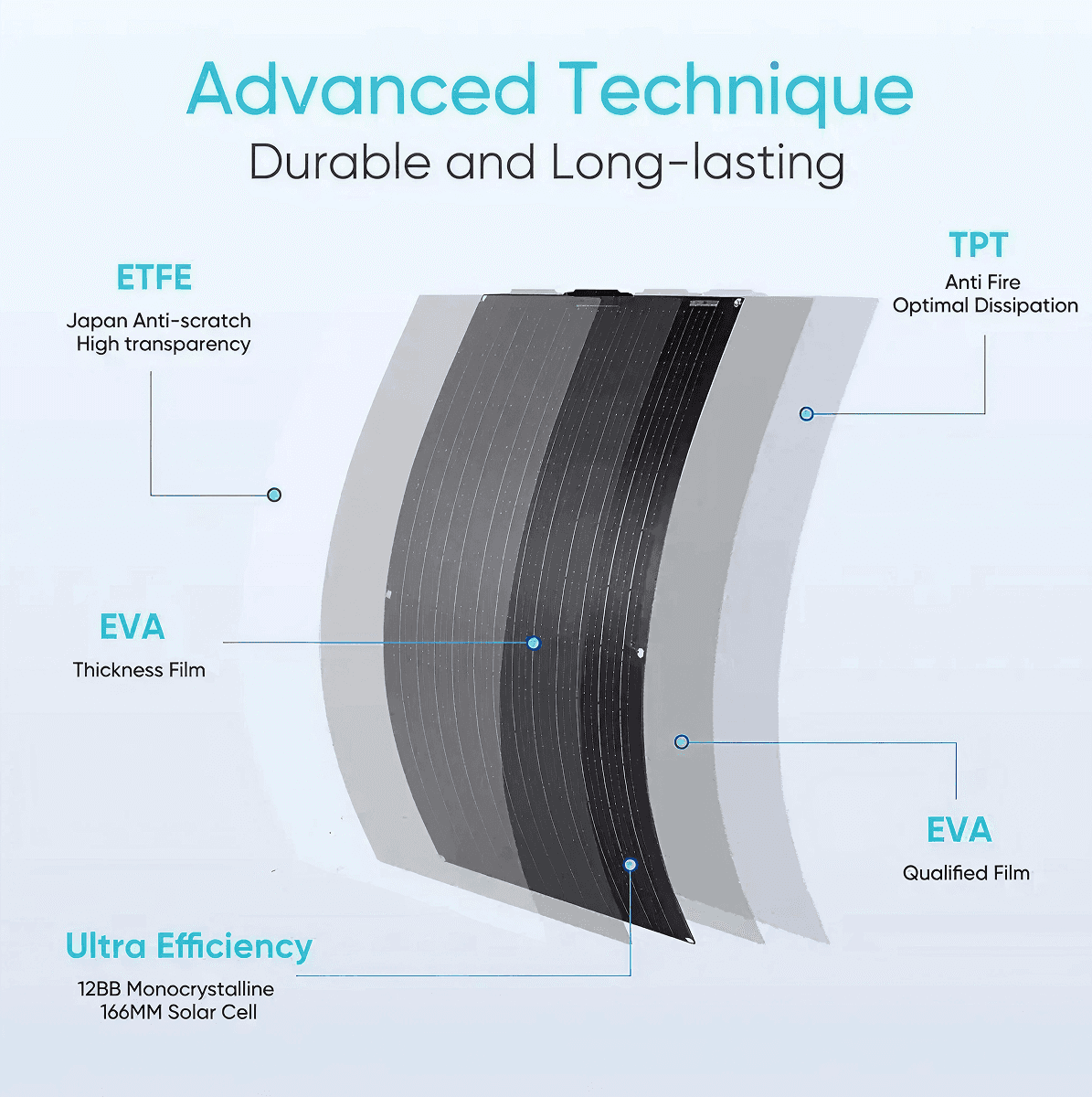

Weather Resistant — PET/EVA layers provide strong protection against UV rays, humidity, and corrosion.
Easy Installation — No need for aluminum frames or heavy mounting brackets.
Off-Grid Ready — Perfect for marine use, RV rooftops, tents, or portable solar setups.
Applications
Off-grid solar systems
Marine and yacht installations
RVs and caravans
Portable solar projects
Lightweight or curved rooftops
Specifications
Model | SP500M-30 |
Maximum Power (Pmax) | 500 W |
Maximum Power Voltage (Vmp) | 34.80 V |
Maximum Power Current (Imp) | 14.37 A |
Open Circuit Voltage (Voc) | 40.94 V |
Short Circuit Current (Isc) | 15.37 A |
Power Tolerance | 0 ~ +3% |
Maximum Series Fuse | 20 A |
Maximum System Voltage | 1000 V DC |
Module Dimensions | 2265 × 1076 × 3 mm |
Weight | ±8.45 kg |
Cell Type | Monocrystalline |
Certifications | CE, CQC, CSA |
