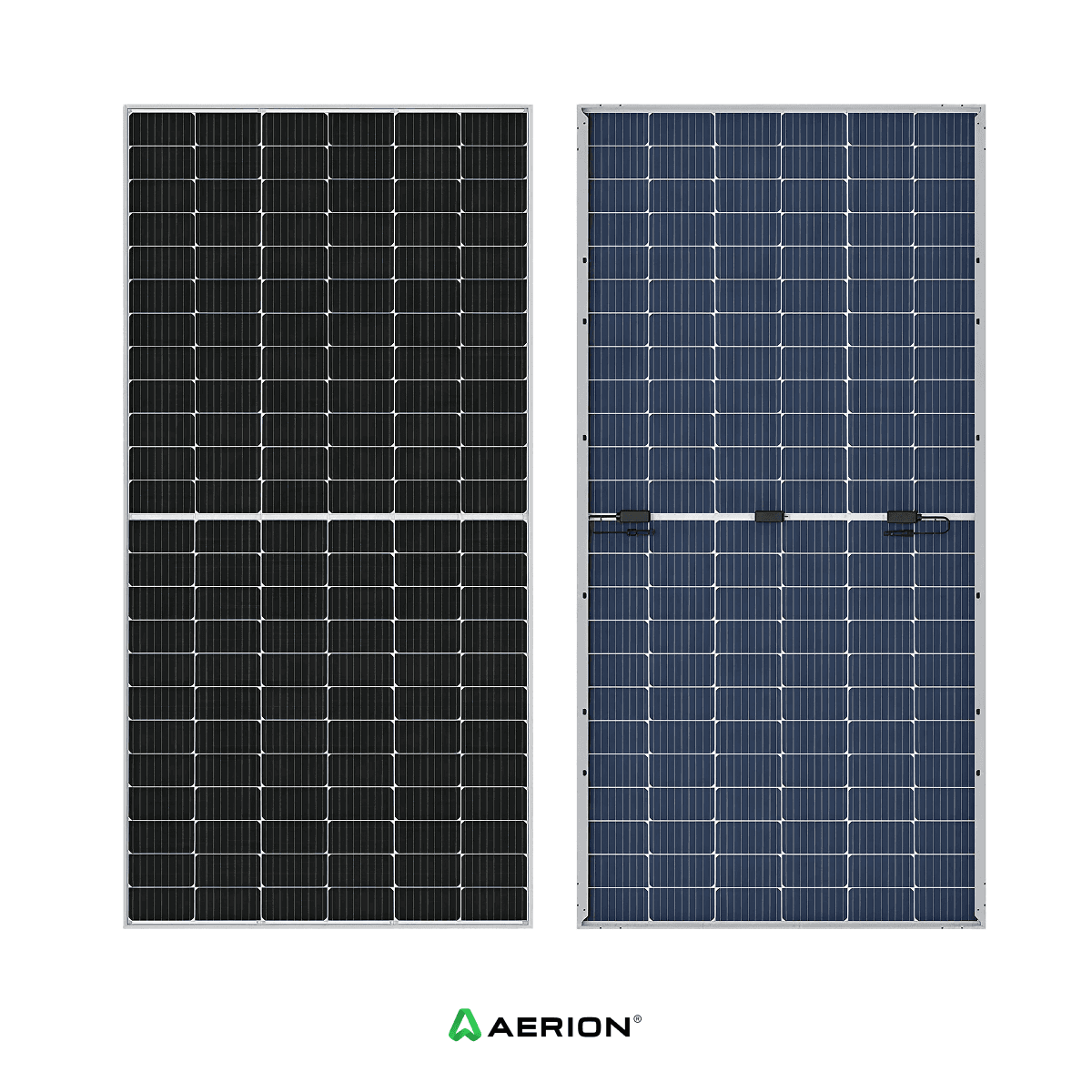

Bifacial Solar Panel 700 Wp – Aerion Series (Trina Vertex N-Type)
Rp0
Detail
Overview
Aerion Bifacial Solar Panel 700 Wp is a high-efficiency monocrystalline dual-glass module that generates power from both front and rear sides, boosting total energy yield by up to 30%.
Built on Trina Vertex N-Type technology, it delivers exceptional performance and stability under high temperatures and low-light conditions.
Its dual-glass construction ensures superior durability against humidity, corrosion, and mechanical stress — making it ideal for utility-scale and hybrid energy systems.
Specifications
Model | TSM-700NEG21C.20 |
Maximum Power (Pmax) | 700 Wp |
Cell Type | Monocrystalline N-Type Bifacial |
Construction | Dual-Glass |
Module Efficiency | ± 22.5% |
Maximum Power Voltage (Vmp) | 40.5 V |
Maximum Power Current (Imp) | 17.29 A |
Open Circuit Voltage (Voc) | 48.6 V |
Short Circuit Current (Isc) | 18.32 A |
Max Series Fuse | 35 A |
Power Tolerance | 0 ~ +5 W |
Max System Voltage | 1500 V DC |
Operating Temp. | -40°C to +85°C |
Mechanical Structure | Dual-Glass (Front & Back 2.0 mm tempered) |
Dimensions | 238 × 113 × 3.5 cm (approx) |
Weight | ± 32 kg |
Warranty | 15 years of product, 30 years of power performance |
