Battery Rack Type 1 Stackable 5 - 12 Stacks
Rp1,200,000
Detail

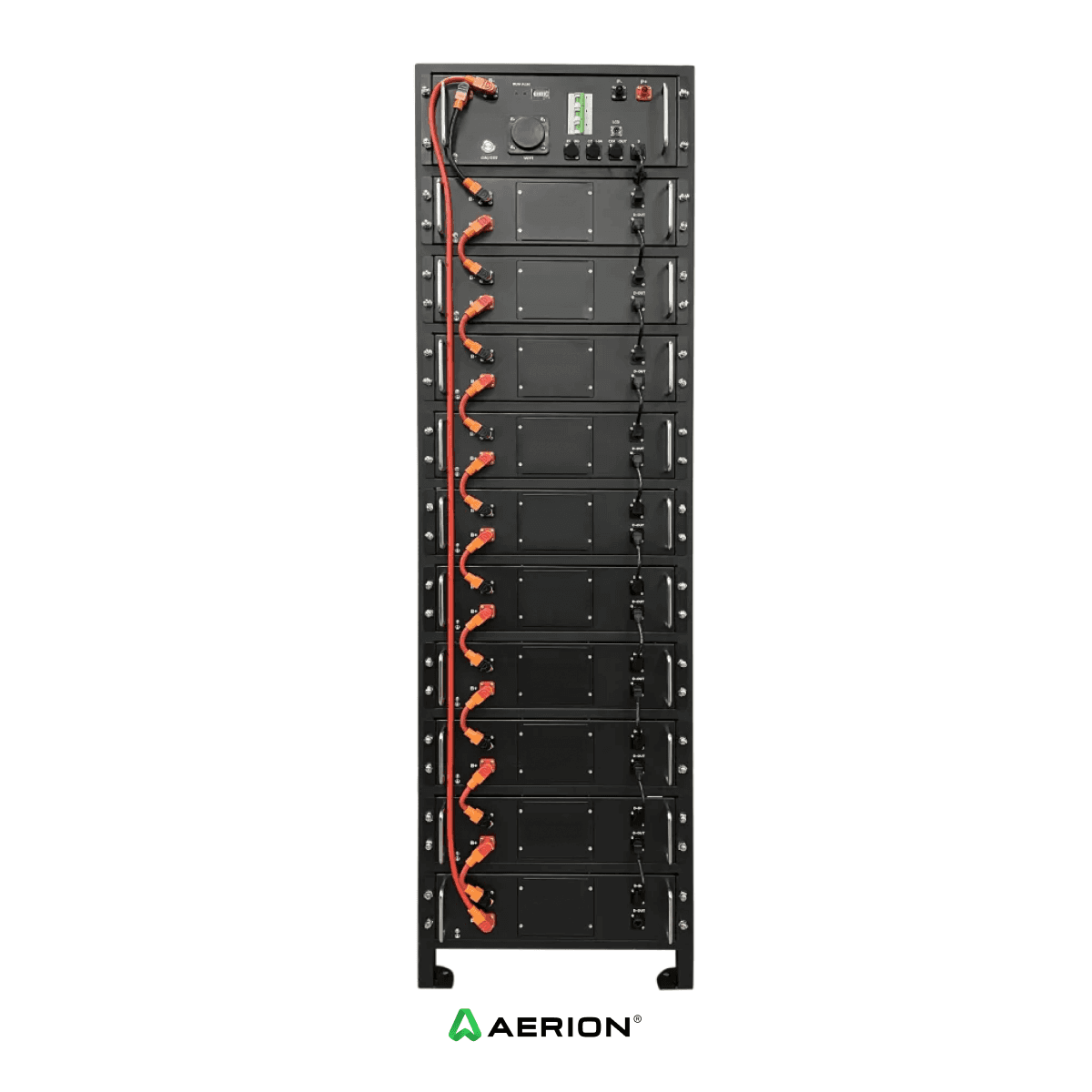

The AERION Battery Rack is a modular LiFePO4 energy storage system designed for high-capacity, scalable, and efficient power storage. Engineered for industrial, commercial, and utility-scale applications, it delivers stable performance, flexible expansion, and intelligent monitoring through advanced BMS integration.
Key Features
Modular Architecture: Easy scalability for higher energy capacity.
High Energy Density: Optimized power-to-space ratio.
Long Lifecycle: Over 6000 charge/discharge cycles at 80% DOD.
Smart BMS: Real-time system management and protection against overcharge, over-discharge, and short circuit.
Rack-Mounted Design: Simplifies installation, maintenance, and thermal management.
Multiple Communication Protocols: RS485, CAN, and optional Ethernet for system integration.
Applications
Commercial and industrial energy storage systems
Renewable energy integration (solar, wind)
Microgrid and off-grid power systems
Data center backup and load management
Peak shaving and grid support
Technical Specifications
Parameter | Specification |
|---|---|
Battery Type | LiFePO4 (Lithium Iron Phosphate) |
Configuration | Rack-mounted modular system |
Nominal Capacity | 51.2 V / 100 Ah (per module) |
Total Capacity (Rack) | Up to 204.8 V / 400 Ah (expandable) |
Cycle Life | ≥ 6000 cycles @ 80% DOD |
Round-Trip Efficiency | ≥ 95% |
Communication Interfaces | RS485 / CAN / Ethernet (optional) |
Protection Grade | IP20 |
Cooling Method | Natural air cooling |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 60°C |
Installation Type | Indoor, rack-mounted |
Dimensions (1 Rack) | 600 × 1000 × 800 mm |
Weight (1 Rack) | Approx. 200 kg |
