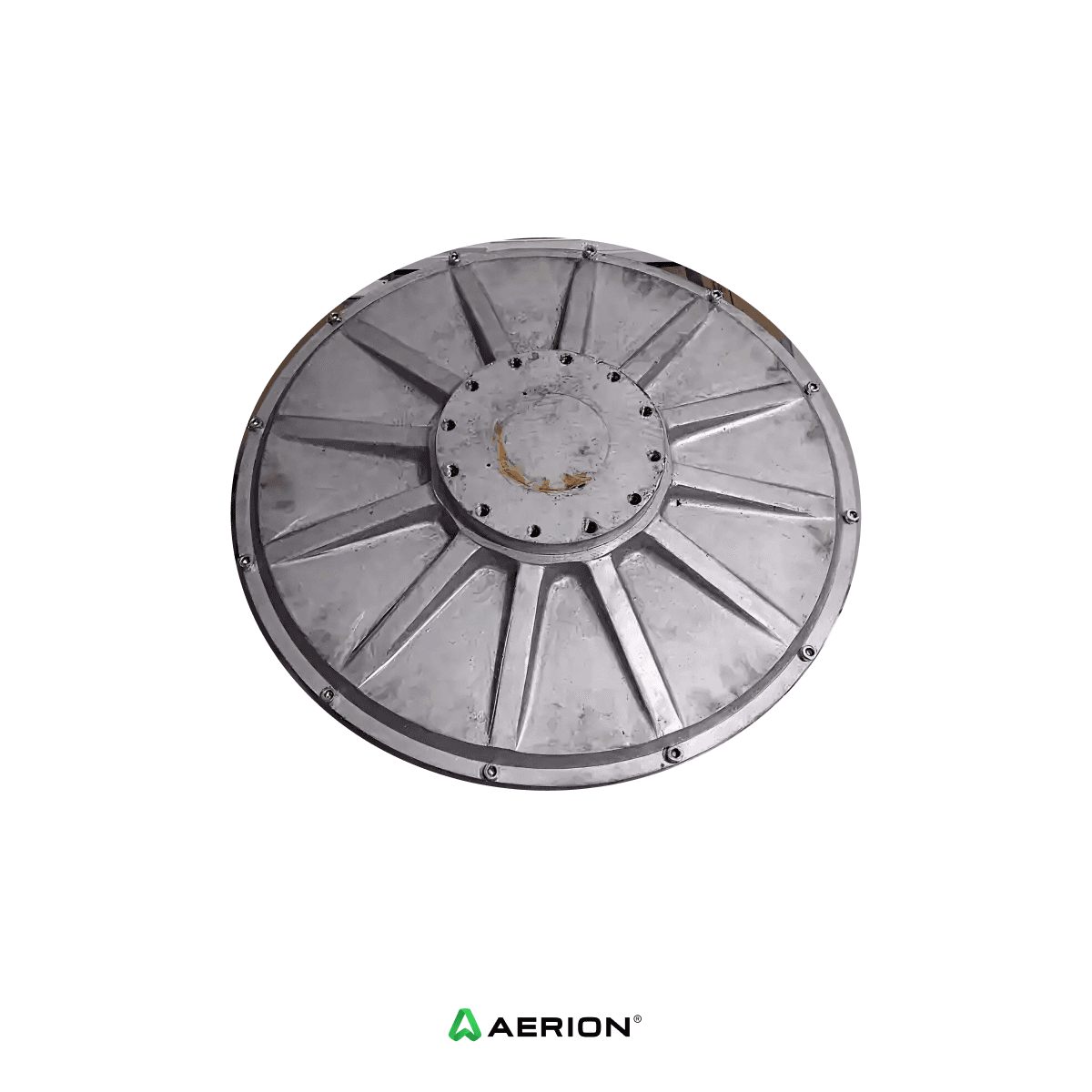

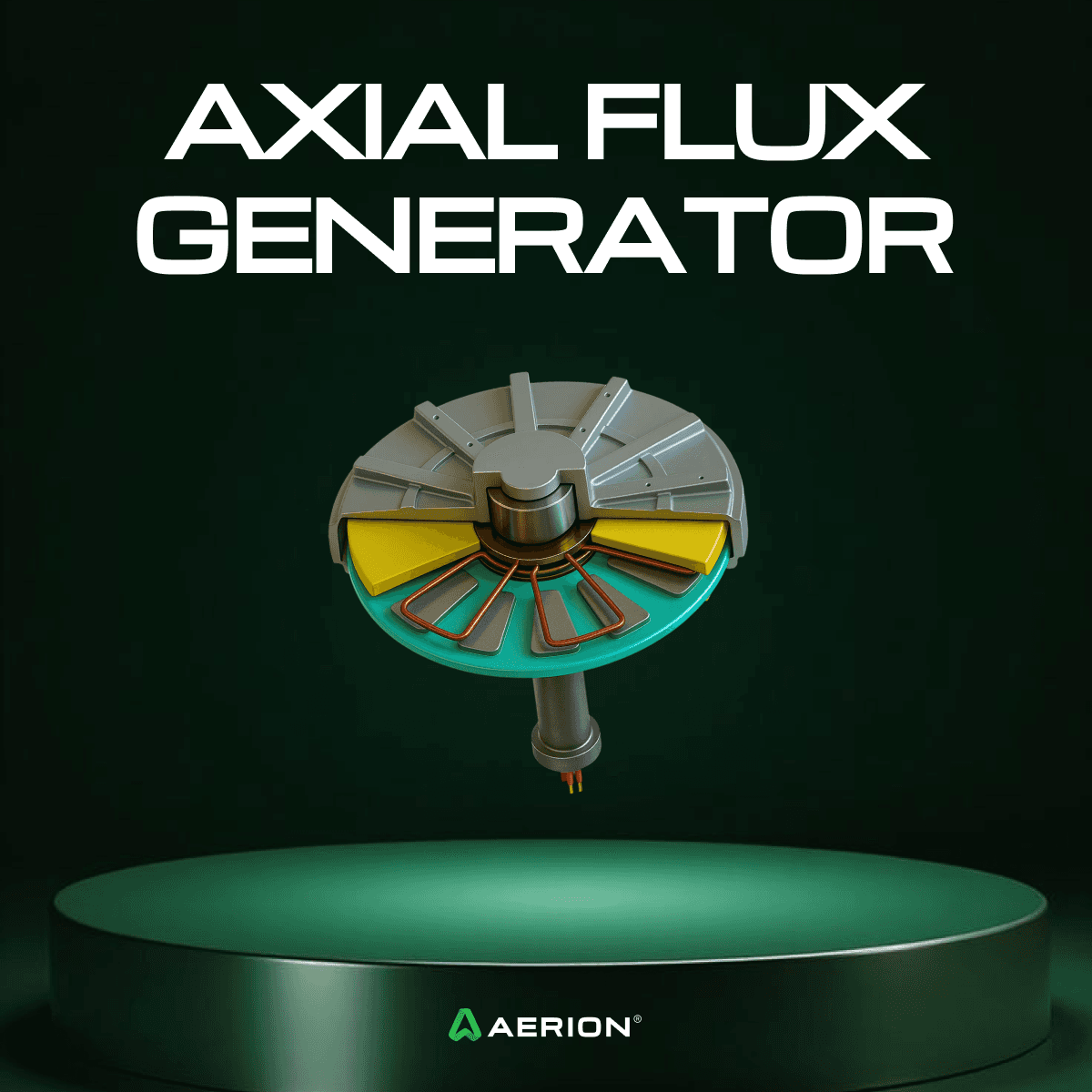

Axial Flux Generator – Coreless Direct Drive for VAWT & HRES
Rp30,550,000
Watt
Detail
The Axial Flux Generator by Aerion is engineered for Vertical Axis Wind Turbines (VAWT) and Hybrid Renewable Energy Systems (HRES).
Featuring a coreless direct-drive design, it delivers high torque at only 300 RPM, ensuring maximum energy efficiency with zero gearbox maintenance.
Its modular configuration makes it suitable for various power capacities, offering flexibility for both small-scale and industrial renewable setups. With an output range of 220–400 V, it integrates seamlessly with modern inverter and hybrid systems.
Key Features
Direct-Drive Design – No gearbox required, reducing energy loss and maintenance.
Coreless Technology – High torque, efficient energy conversion, and smooth operation.
Low-Speed Operation (300 RPM) – Perfect for vertical wind and hybrid applications.
Voltage Output 220–400 V – Works with most inverters and hybrid setups.
Modular & Scalable – Available in multiple power variants for flexible system design.
Applications
Vertical Axis Wind Turbine (VAWT)
Hybrid Renewable Energy System (HRES)
Off-grid and micro-grid energy systems
Research and educational renewable projects
Modular hybrid wind-solar towers
Specifications
Type | Coreless Axial Flux Generator |
Drive System | Direct Drive (No Gearbox) |
Rated Speed | 300 RPM |
Voltage Output | 220 V – 400 V |
Power Variants | 3 kW / 5 kW / 10 kW (custom available) |
Efficiency | >93% |
Cooling System | Natural Air-Cooled |
Mounting Type | Flange Type / Custom Mount |
Material | Copper Windings, Aluminum Housing |
Application | VAWT / HRES / Off-Grid Renewable Systems |
Weight (Approx.) | 25–40 kg (depending on model) |
Protection | IP54 Rated |
Operating Temperature | -25°C to +60°C |
